80 Series Part-Time Transfer Case Conversion Kit

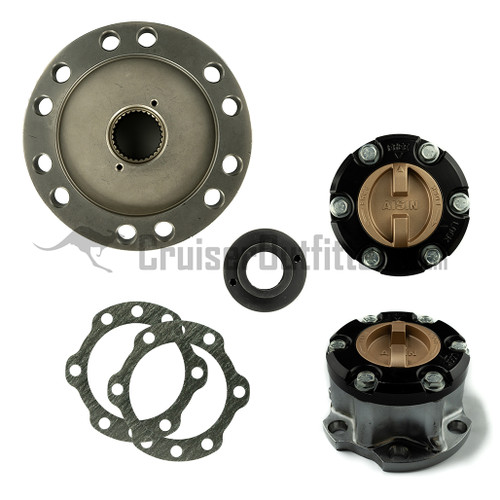

Includes:
- 1 x T-Case Spool
- 2 x AISIN Hubs (Color Options Available)

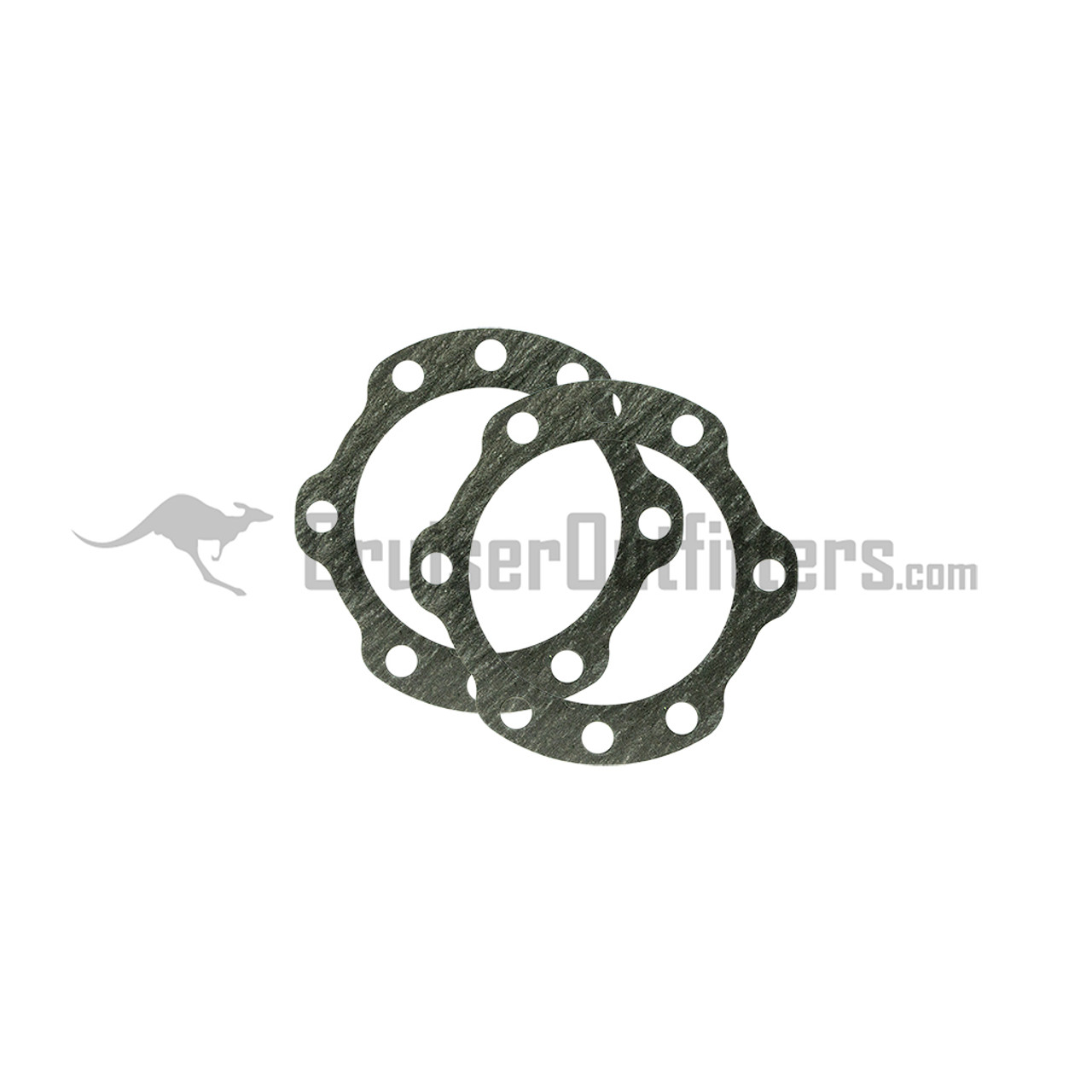

- 2 x Hub Gaskets
If you are unsure on the proper fitment for your vehicle, please email info@cruiserteq.com with the full Model Code and Frame# / Vin#.
Fits 1/1990 - 7/1992 FJ80 or all year 8x Series & LX450 Customers who already have a Center Differential Lock switch installed.
NOTE: 4/1994 - 1/1998 80/LX450 Series vehicles will require replacement birfields featuring a double groove for the snap ring, machining a second groove in the stock birfield for a lower snap ring or use of 1/90-4/94 "short" birfields. We have birfs in stock to accommodate this, please see our standard duty variants: FAXT60120JP, FAXT60120FB, or heavy duty variants: RCVJ2474-30TRCV, FAXBIRFFJ80HDKIT, FAXTBIRFFJ80HD, TG301720-1-KIT, FATG303709 offerings featuring dual snap ring groove birfield outer axles. ABS equipped 80's will not have functioning ABS (light will be illuminated) when front hubs are unlocked, brakes will function like a standard non-ABS application. Aftermarket ABS kit (part# HUBMFK2045) can be installed to provide ABS in all conditions, please call/email for additional info. Installing the spool does require removing the bearing from the rear half of the factory center diff housing, this bearing will then be pressed onto the provided spool. In the event you don't want to worry about removing/pressing the bearing, we can supply and install. Please order TCB60008 - $74.50 at the same time as part-time conversion order and we will press the bearing on for no additional charge. The TCB60008 is also included in TC9092 & TC9297 transfer case rebuild kits if you plan to do a full transfer case overhaul.
