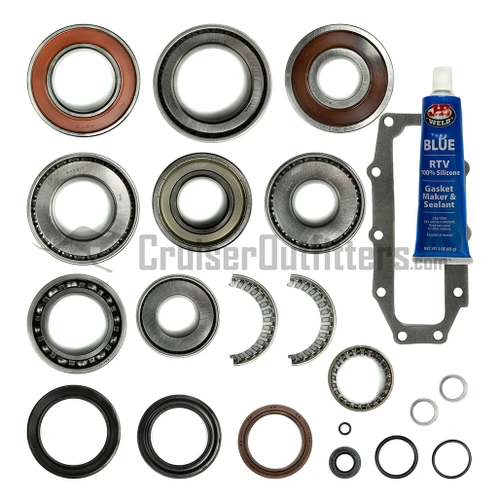

High Quality Japanese T-Case Rebuild Kits.
- 1 x Plug O-Ring
- 1 x Shift Shaft Lever Seal
- 1 x Transmission to T-Case Seal
- 1 x Front Output Flange Seal
- 1 x Rear Output Flange Seal
- 1 x Form-In-Place-Gasket/Silicone
- 2 x Drain & Fill Plug Gaskets
- 1 x Input Shaft Rear Sealed Roller Bearing
- 1 x Front Output Shaft Sealed Roller Bearing
- 1 x Input Shaft Front Sealed Roller Bearing
- 1 x Rear Output Roller Bearing
- 1 x Idler Low Gear Cage Bearing
- 2 x Front Output Needle Cage Bearing Half
- 1 x Idler Rear (Tapered Bearing/Race)
- 1 x Ider Front (Tapered Bearing/Race)
- 1 x Center Diff Front (Tapered Bearing/Race)
- 1 x Center Diff Rear (Tapered Bearing/Race)
- 1 x PTO Side Cover Gasket (Not used on US Spec Case)
Kit Does Not Include: (Inspect and Reuse)
- Output Shafts
- Idler Shafts
- Linkage Components
The above list of parts not included are typically reused in a T-Case Rebuild. If needed, they are available separately. Please call for more information.
If you are unsure on the proper fitment for your vehicle, please email firstname.lastname@example.org with the full Model Code and Frame# / Vin#.
Fits 1/1990 - 8/1992 FJ80 with original HF2A Transfer Case (Fits 1/1990 - 8/1992 FJ80 with original HF2A Transfer Case. Also fits 1990+ non-US 8x Series transfer cases, please call with VIN for verification)
Note: Individual Transfer Case bearings, shafts and gears may be available on a special order basis. Please call or e-mail with your specific needs for pricing and availability.
