Sumo Gear Land Cruiser Transfer Case 4:1 Low Range Gear Set - Fits Split Case 8/1980-4/1986 4x/6x/7x Series

Sumo Gear sets are made to OE specifications in Japan. These popular gear sets offer transfer case gear reduction with the highest quality components on the market. Fits Split-Cases with 34mm* Idler Shaft. REQUIRES CLEARANCING TO CASE HOUSING! Factory ratio is ~2.3:1, these 4:1 gears offer a 75% low range reduction and a 8% high range underdrive reduction. Made in Japan to OE Toyota specifications.

Kit Includes:

• 1 x Input Gear

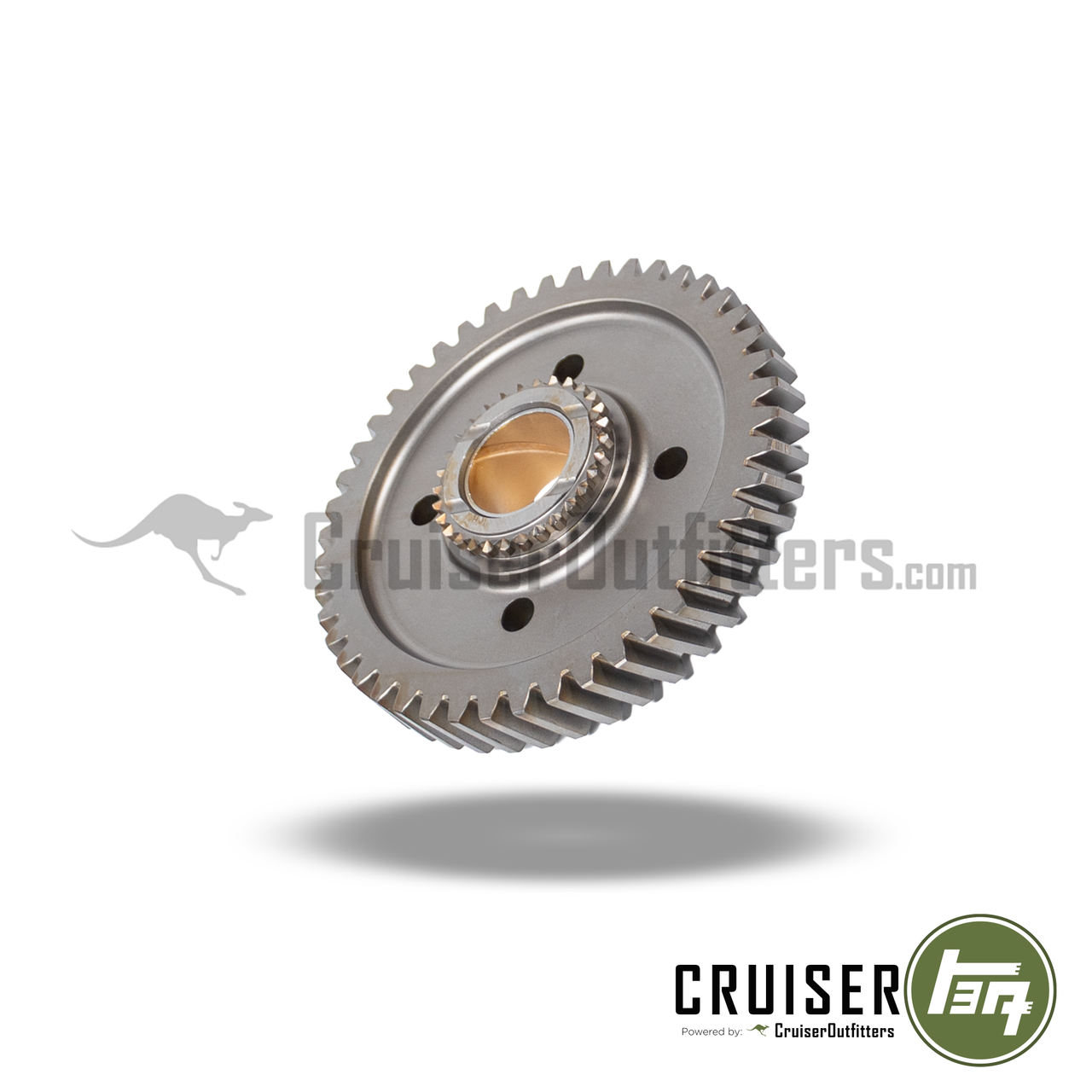

• 1 x Idler Gear Assembly
• 1 x Idler Shaft
• 1 x Idler Shaft Spacer
• 2 x Idler Bearings

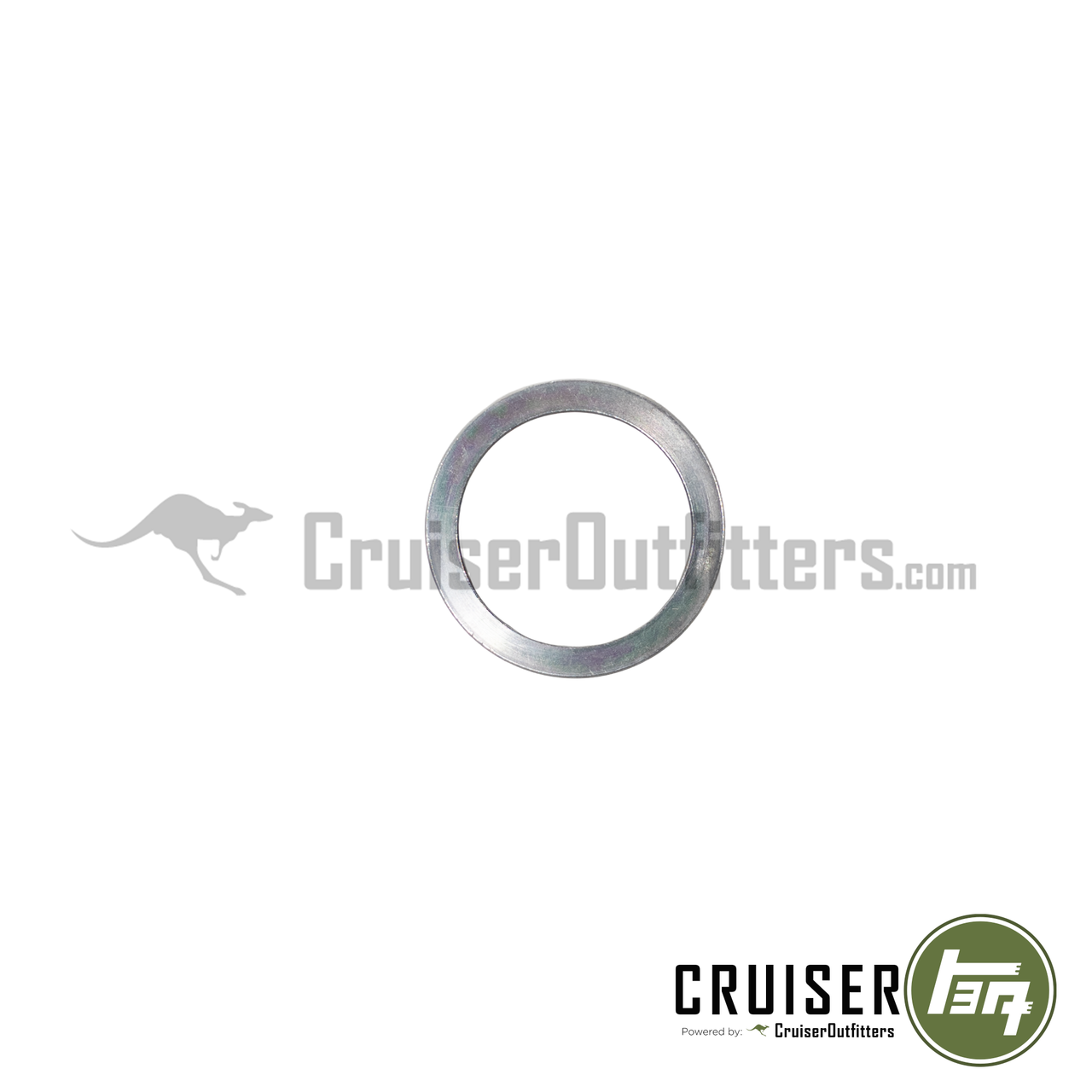

• 2 x Thrust Washers

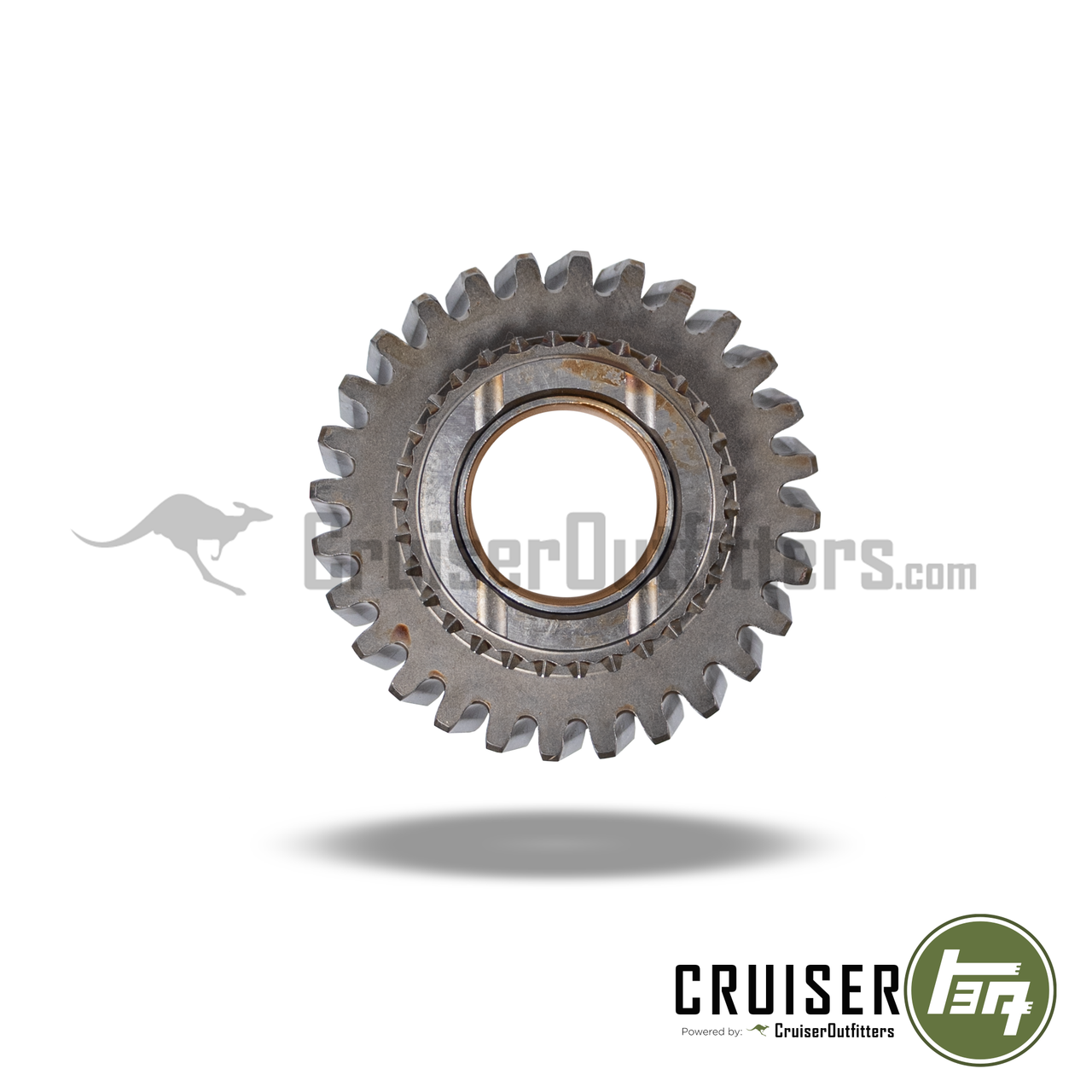

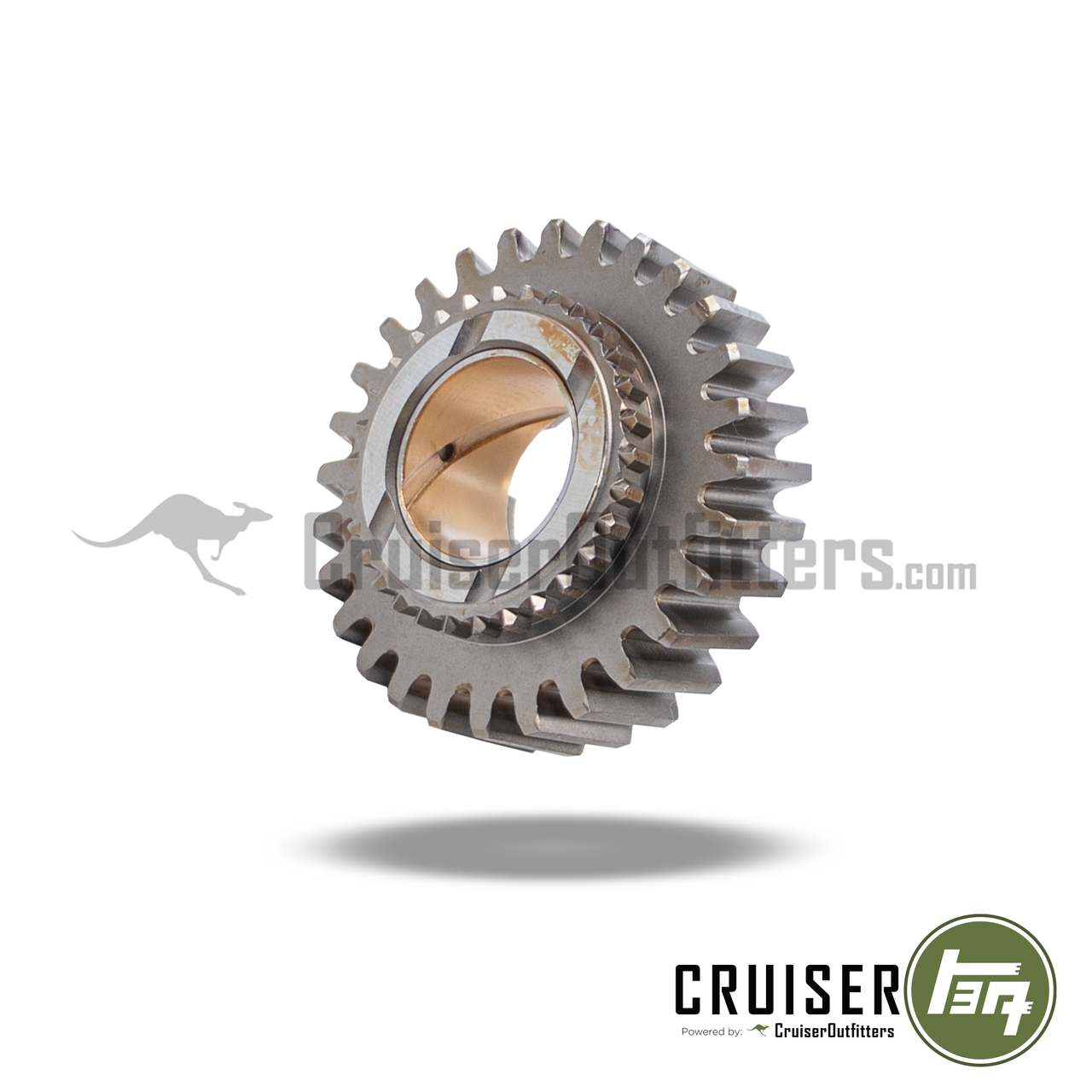

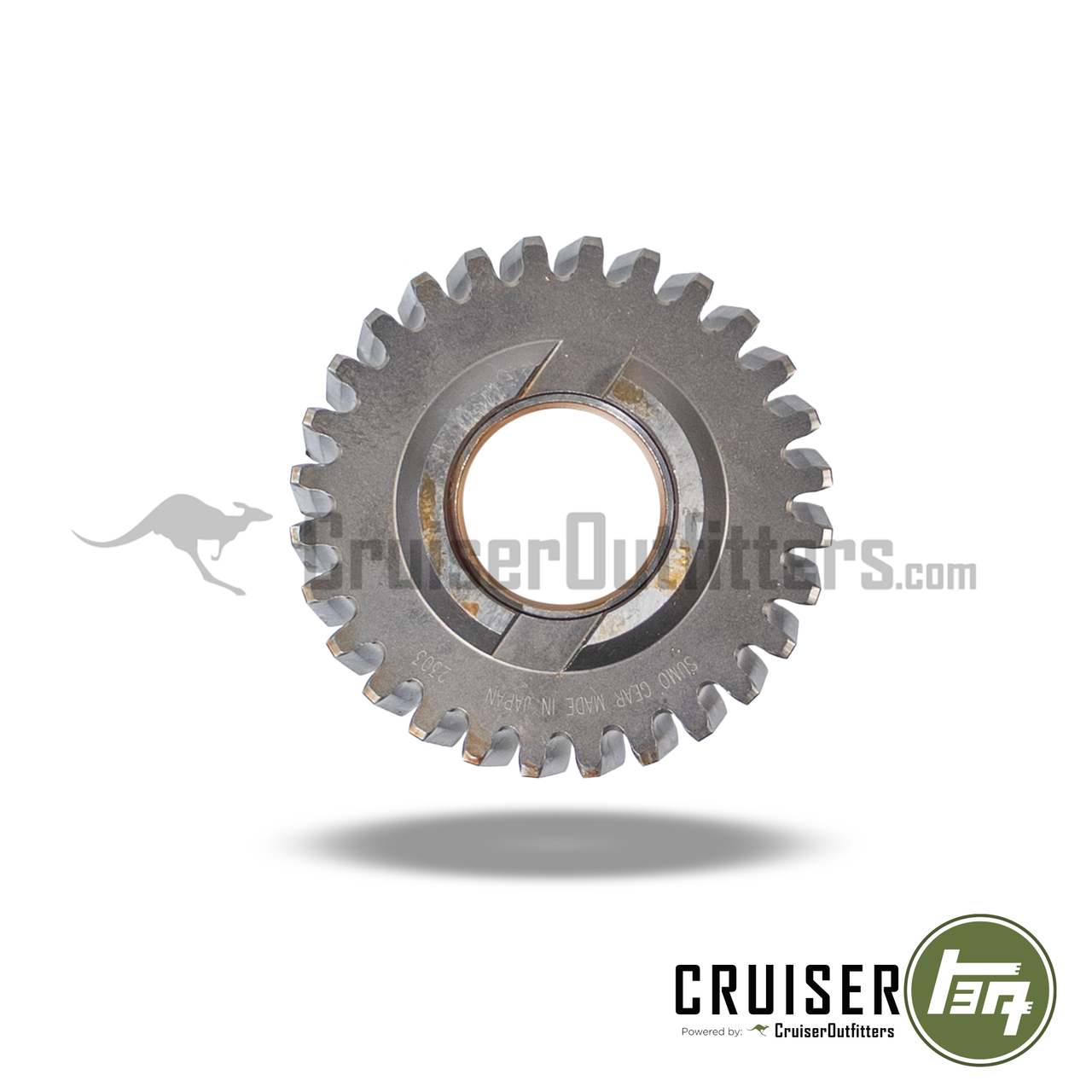

• 1 x High Speed Output Shaft Gear

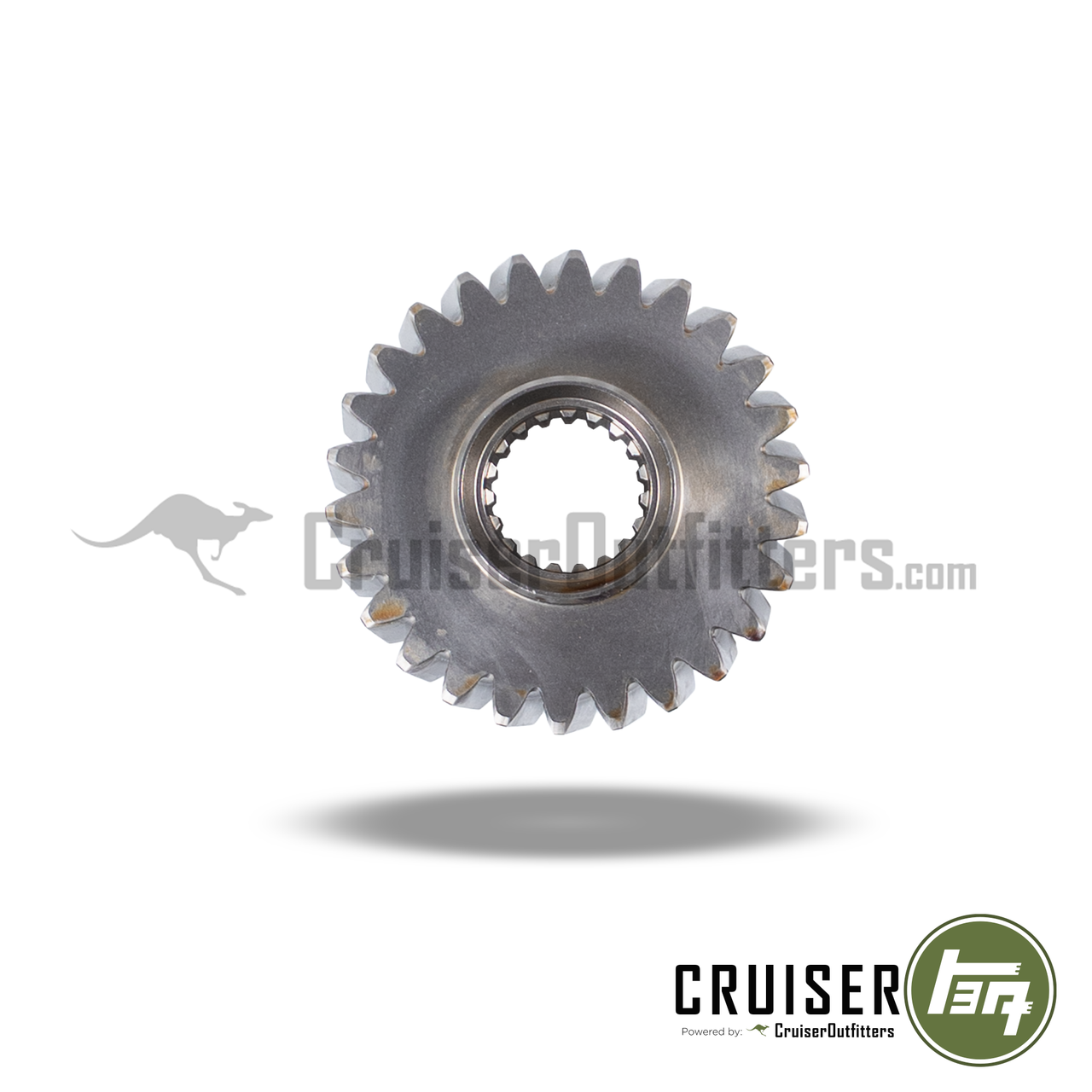

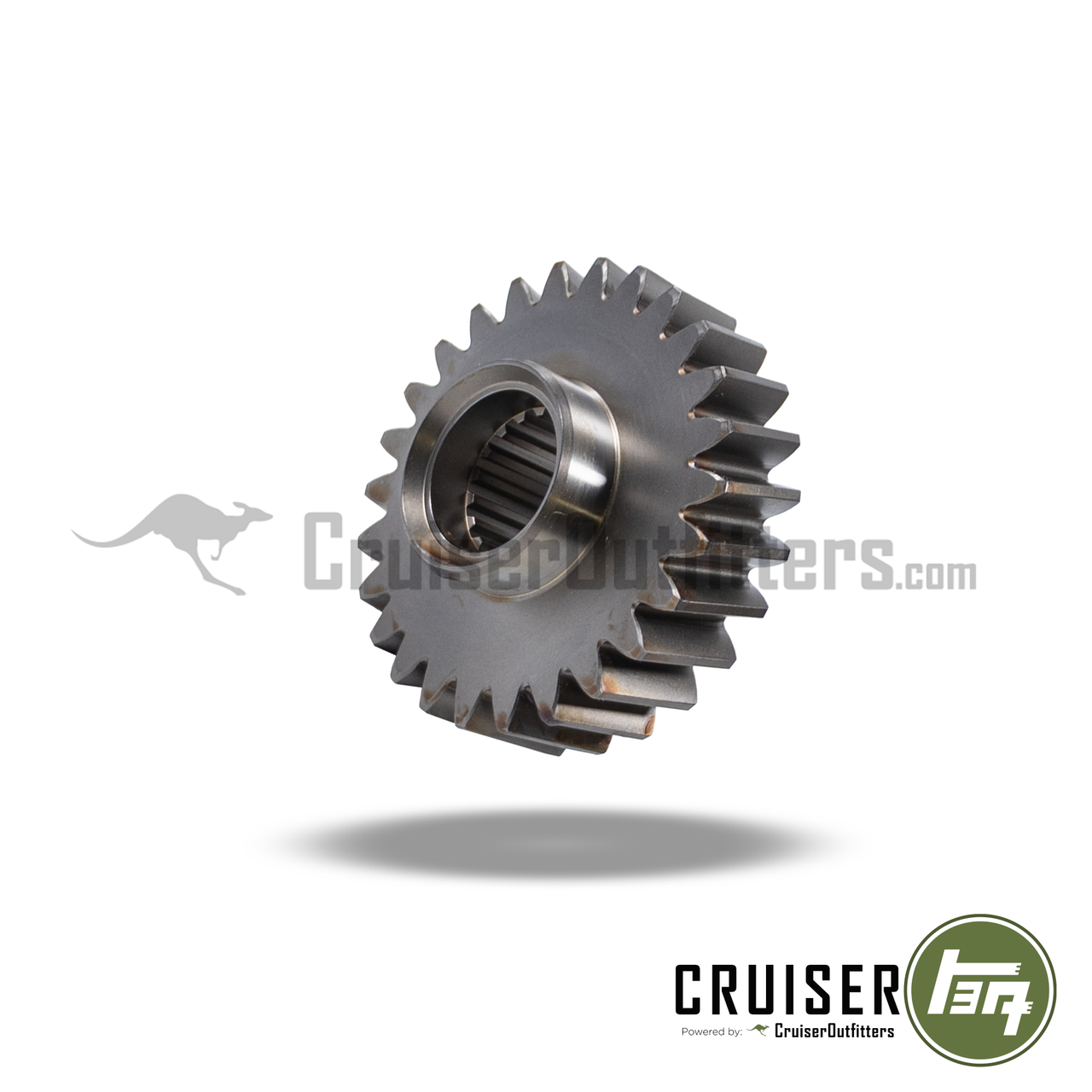

• 1 x Low Speed Output Shaft Gear

If you are unsure on the proper fitment for your vehicle, please email info@cruiserteq.com with the full Model Code and Frame# / Vin#.

Fits Split Case 8/1980-4/1986 4x/6x/7x Series
