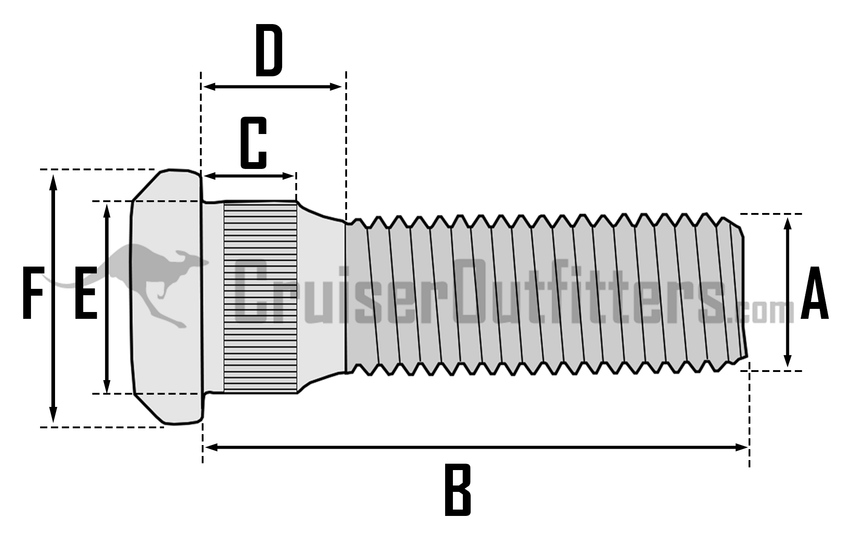

| Part # | A | B | C | D | E | F | Application Guide |
|
(90942-02014) |
12x1.50 RH | 37mm | 8.5mm | 14mm | 14.2mm | 19mm |
Early - 09/1975 4x/5x Series - DRUM FRONT / DRUM REAR 09/1975-07/1980 4x/5x Series - DISC FRONT / DRUM REAR |
|
(90942-02049/90942-02070/90942-02082) |
12x1.50 RH | 40mm | 5.75mm | 12.25mm | 14.2mm | 19mm |
01/1990-1998 8x Series/LX450 - DISC FRONT 04/1996-08/2002 9x Series - DISC FRONT 09/2002-07/2009 120 Series/GX470 - DISC FRONT 11/2009-10/2023 150 Series/GX460 - DISC FRONT |
|
(90942-02034/90942-02052) |
12x1.50 RH | 45mm | 9.5mm | 17mm | 14.2mm | 19mm |
08/1980-01/1990 4x/6x/7x Series - DRUM REAR 01/1990-1998 8x Series/LX450 - DISC REAR / DRUM REAR 01/1990-08/1999 7x Series - DISC REAR / DRUM REAR |
|
(90942-02044/90942-02053) |
12x1.50 RH | 52mm | 15mm | 29mm | 14.2mm | 19mm |
08/1980-01/1990 4x/6x/7x Series - DISC FRONT 01/1990-08/1999 7x Series - DISC FRONT |
|
(90942-02079) |
12x1.50 RH | 44mm | 9mm | 19mm | 14.2mm | 19mm |
04/1996-08/2002 9x Series - DISC REAR 09/2002-07/2009 120 Series/GX470 - DISC REAR 11/2009-10/2023 150 Series/GX460 - DISC REAR |
|
(90942-02077/90942-02083) |
14x1.50 RH | 44mm | 10mm | 16.25mm | 16.3mm | 21.75mm |
01/1998 - 2007 100 Series/LX470 - DISC FRONT / DISC REAR 08/1999-2024 7x Series - DISC FRONT / DISC REAR / DRUM REAR 2008-2021 200 Series/LX570 - DISC FRONT / DISC REAR 07/2021+ 300 Series/LX600/LX700 - DISC FRONT / DISC REAR |
Wheel Stud Application & Fitment Guide
Mar 5th 2026
